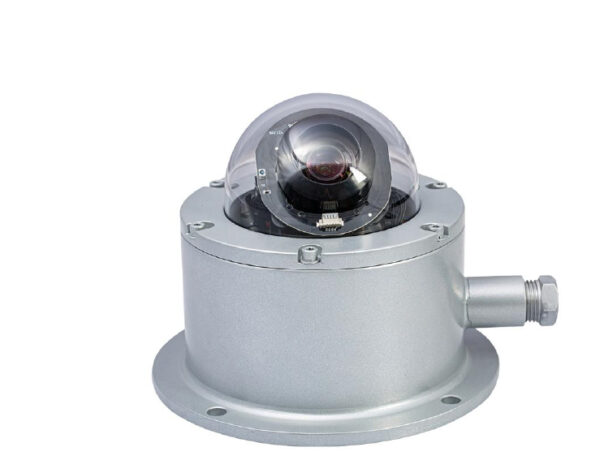

Marine Grade Anti-Corrosion Mini PTZ IR Dome Camera

Standard KDQ-EX-PTZ2012IR04 2MP,12X Optical Zoom,5-60mm Focal Length,With IR,POE Power

The Marine-Grade Anti-Corrosion Mini PTZ IR Dome Camera is designed to deliver superior surveillance performance in challenging marine and offshore environments. With its advanced PTZ capabilities, corrosion-resistant materials, and explosionproof design, this camera is an ideal choice for ensuring security on ships, offshore platforms, and other marine installations.


  • Type: KDQ-EX-PTZ**** IR04
  • Certificates: DNV TA/ATEX/CE/FCC
  • Material: Stainless Steel 316L
  • Ex Mark: Ex || 2G Ex db op is IIC T6 Gb/ll 2D Ex tb op is IIIC T80°C Db IP68
  • Temp.Range Min: -30°C

Marine-Grade Anti-Corrosion Mini PTZ IR Dome Camera: An Essential Surveillance Solution for Marine Applications

The Marine-Grade Anti-Corrosion Mini PTZ IR Dome Camera is designed to deliver superior surveillance performance in challenging marine and offshore environments. With its advanced PTZ capabilities, corrosion-resistant materials, and explosionproof design, this camera is an ideal choice for ensuring security on ships, offshore platforms, and other marine installations.

Key Features and Specifications
  1. Robust Anti-Corrosion Design
    Crafted from stainless steel 316L and coated with anti-corrosion treatments, this camera is engineered to withstand the harshest marine conditions, including salt spray and extreme humidity. Its robust construction guarantees long-term durability, making it suitable for prolonged use on ships and offshore installations.
  2. DNV ATEX Certification
    Certified to meet DNV ATEX standards, this camera adheres to strict safety and quality protocols, ensuring it is explosionproof and reliable for hazardous environments. It is particularly suitable for vessels and facilities handling flammable materials or operating in volatile zones.
  3. Pan-Tilt-Zoom (PTZ) Functionality
    The camera's PTZ capabilities enable operators to pan, tilt, and zoom for comprehensive coverage of large areas. This makes it perfect for monitoring decks, engine rooms, and cargo holds. Its optical zoom ensures detailed imaging, even from significant distances.
  4. Infrared (IR) Technology
    Equipped with IR functionality, the camera provides clear video even in complete darkness. This feature is essential for round-the-clock surveillance, ensuring visibility during nighttime or in poorly lit areas.
  5. Weatherproof and Vibration Resistant
    With an IP68 rating, the camera can operate in extreme conditions, from temperatures as low as -40°C to as high as 60°C. It is also built to endure vibrations and shocks, making it highly reliable for use on moving vessels
  6. Advanced Surveillance Features
    Additional features like motion detection, line crossing alerts, and intrusion detection enhance security capabilities, providing proactive monitoring solutions for marine operators.
Applications of the Mini PTZ IR Dome Camera
  1. Ships and Vessels
    This camera is indispensable for shipboard security, including monitoring the bridge, cargo areas, and exterior decks. Its anti-corrosion and explosionproof properties ensure uninterrupted performance in the saline atmosphere and hazardous zones.
  2. Offshore Platforms Oil rigs and other offshore facilities benefit from the camera's DNV ATEX compliance and advanced imaging capabilities. It enhances safety by monitoring critical operations and detecting potential risks in real-time.
  3. Marine Terminals and Ports
    In port facilities, the camera helps prevent unauthorized access and improves operational efficiency by monitoring loading and unloading activities.
  4. Hazardous Industrial Facilities Beyond marine use, its explosionproof certification makes it a valuable asset for industries handling volatile substances, such as chemical plants or refineries.
Why Choose This Camera?

TThe Marine-Grade Anti-Corrosion Mini PTZ IR Dome Camera combines state-of-the-art technology with durable construction to address the unique challenges of marine surveillance. Its compliance with DNV ATEX standards, robust anti-corrosion design, and versatile PTZ functionality make it an invaluable tool for ensuring safety and security on ships and other marine installations.

  • Type: KDQ-EX-PTZ**** IR04
  • Certificates: DNV TA/ATEX/CE/FCC
  • Material: Stainless Steel 316L
  • Ex Mark: Ex || 2G Ex db op is IIC T6 Gb/ll 2D Ex tb op is IIIC T80°C Db IP68
  • Temp.Range Min: -30°C
  • Temp.Range Max: +60°C
  • Vibration(0-1OOHz): 0.7g
  • Video: IP
  • Operational Areas: Outdoor
  • Mounting: Wall mounted ,Ceiling Mounted
  • Wiper: N/A
  • Pan/Tilt: Remote operated
  • Rotation Vertical: 0-90°
  • Rotation Horizontal : Rotation Horizontal
  • Surface : powder coating
  • Resolution: 2MP,4MP ,etc
  • Zoom: 5x , 12x
  • CCTV Add-On: Anti-Flicker ,heartbeat,mirror ,privacy mask etc
  • Voltage: PoE /DC12V
  • Net Weight: 3.5kg
  • Dimensions: Width: 165 mm, Depth: 165 mm, Height: 136 mm
